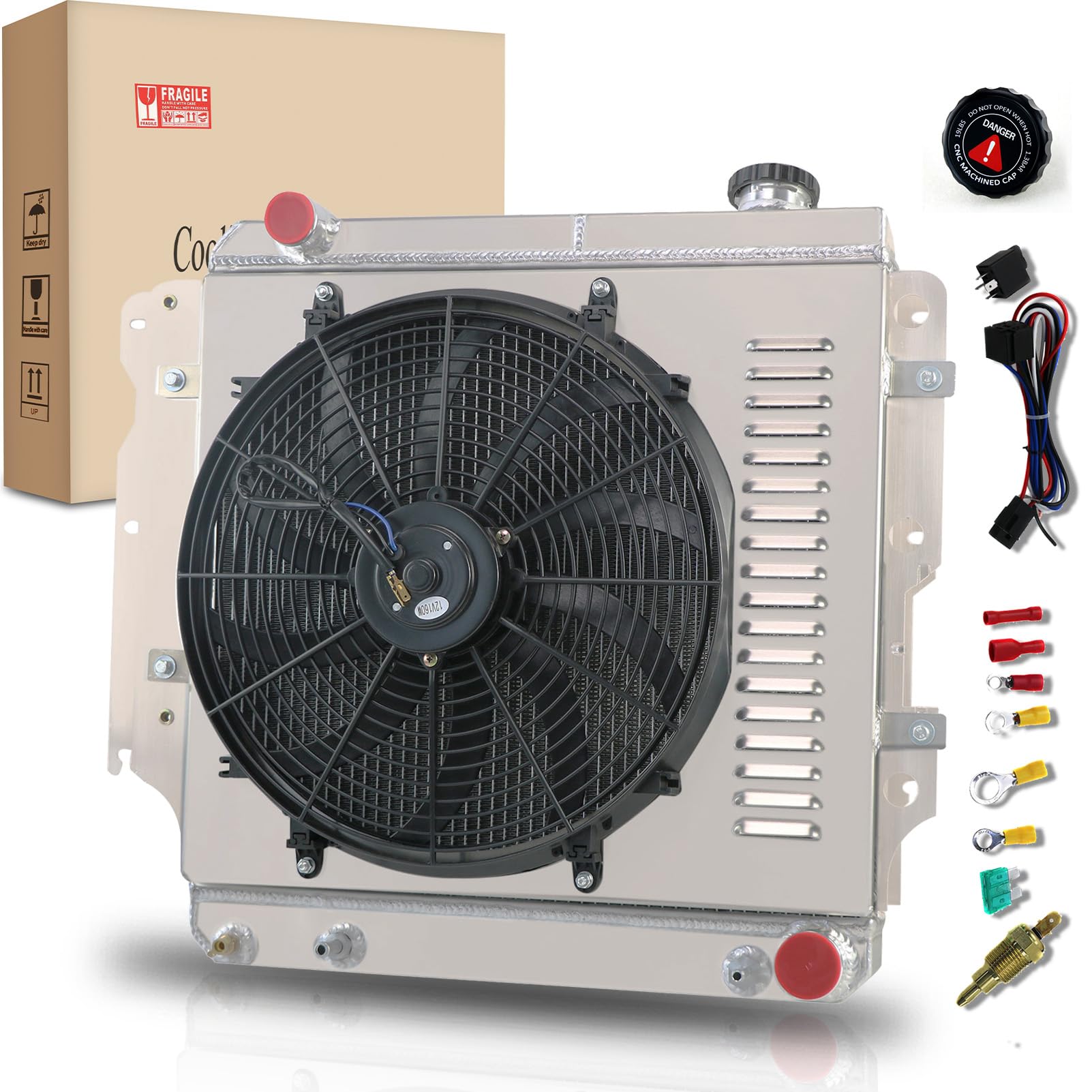

HonorPower 3 Rows Core Aluminum Radiator for 1987-2006 Jeep Wrangler TJ YJ GM Chevy V8 Conversion, with Fan Shroud and Relay All AA5052 Aluminum
$231.20
by HonorPower
Core Size: 18 1/2 TALL X 20 1/8 WIDE; Overall Size: 23 3/8 TALL X 25 3/4 WIDE Upper HOSE CONNECTION(LEFT): 1 1/2; BOTTOM HOSE CONNECTION(RIGHT): 1 3/4 100 percent Aluminum Construction provided greater heat and pressure tolerance, improved cooling efficiency and structural rigidity, at least 35 percent more efficient than stock ones Light Weight Direct Bolt-On OE Fitment or Replacement Installation instruction is not included. Professional installation is highly recommended! Part number: HonorPower- 0096 Fit type: Vehicle Specific Package Include:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Specification
3 Row of tubes Core Racing Design
Material: Full Aluminium
Core and Tank: All Aluminum
Surface Finish: Aircraft Grade 5057 Raw Aluminum
OEM style brass petcock drain
CNC precision machined radiator cap
Transmission: Auto and Manual
The core of the radiator is welded in vacuum brazing furnace, no epoxy. The Radiator are 100% welded by TIG. Stronger & Higher Capacity for Coolant than OEM units
Fans Details
Maximum Fan CFM: 2000±200
Fan Diameter (in): 16.050 inches
Thickness (in): 2.790 inches
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
This Radiator Compatible With
1987-2006 Jeep Wrangler YJ TJ w/Chevy Engines Automatic and Manual
1987-2004 Jeep Wrangler YJ GM chevy V8 Conversion Automatic and Manual
Manufacturer Part Number: 8101, SBR8101, CC8101, MC8101, CU8101, DPI8101
Interchange Part Number: KKS8101 AE8101 EC8101 RA8101 RK8101 SC8101
Other Part Number: Q8101 TYC8101 RAD8101 SPTCU8101
Why Choosing Us?
Full set in box and 100% brand new.
Full Aluminum High Performance, 40% more Extra Flow.
Super capacity than your stock cooling, great performance upgrade.
We guaranty that all our products are made of the best materials and advanced manufacture technique.
All our products are 100% fully tested to ensure top quality.
No Fitting Instructions Supplied!
Professional Installation is Highly Recommended!
