【Fitment】- 3 Core Cooling Radiator+Shroud Fan Kit is compatible with 1964-1966 65 Ford Mustang, 1963-1965 Falcon & Mercury Comet V8 Engine Auto/Manual. 【Specification】- Rows: 3 Rows (44mm Core); Core Size: 16-3/8" W x 17-1/4" H; Overall Size: 21-1/2" H x 19-5/8" W; Upper Inlet: 1-1/2" on Passenger Side; Lower Outlet is: 1-3/4" on Passenger Side. 【Premium Material】- Full aviation aluminum craftsmanship, 100% welded by TIG. Carefully crafted to exceptional OE standards for a precise fit, Aircraft AA5052 grade aluminum and with a raw aluminum finish. 【No leakage Worries】-100% pressure tested to prevent leakage. Thickened carton packaging with internal shock-absorbing design. 【US Local Stock & 1-Year Warranty】- We are a seller specializing in Cooling systems & Radiators. If you encounter any problems, please kindly contact us by sending Amazon Message, and we will try our best to help you.

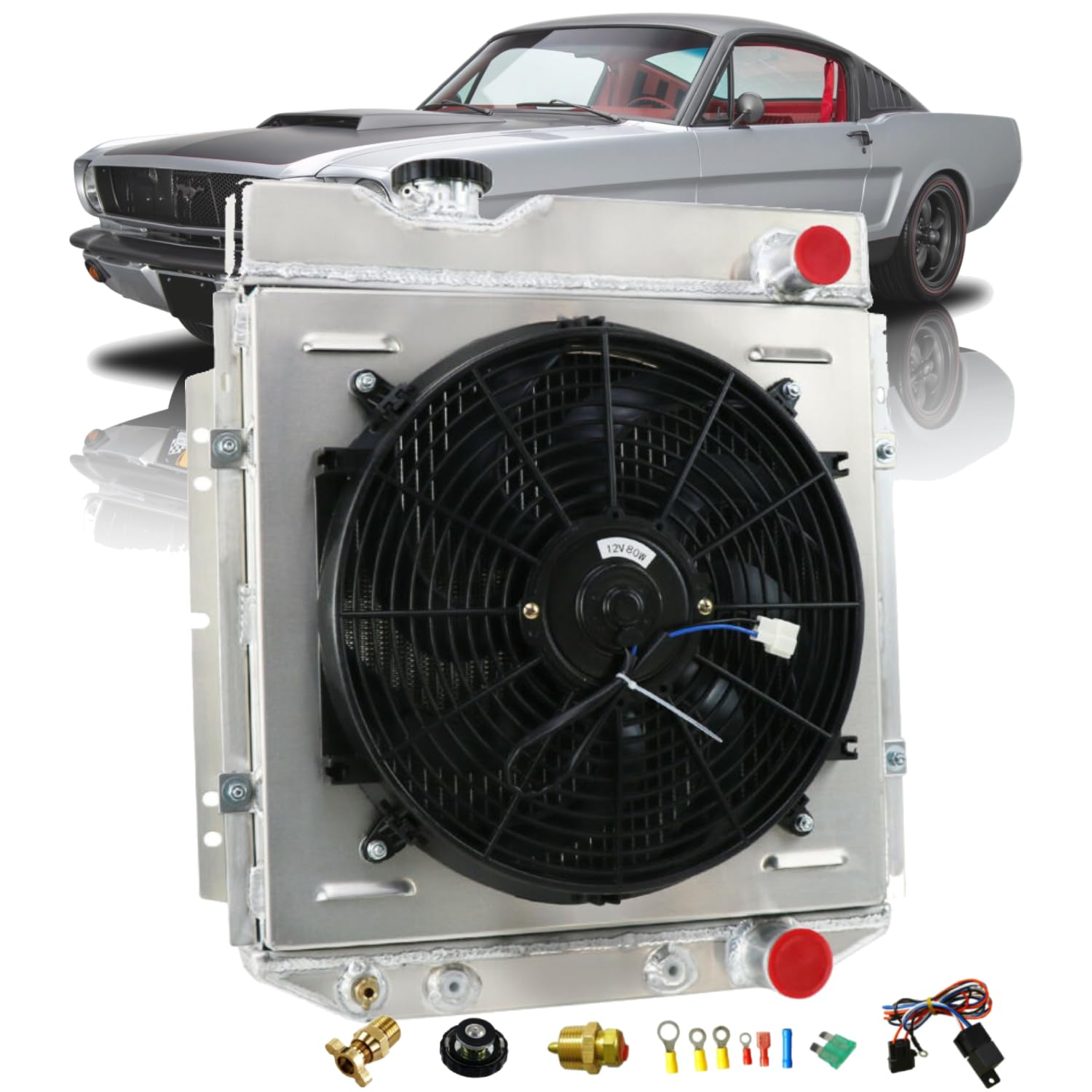

Package Included:

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Application:

For Ford Mustang / Falcon / Mercury Comet V8 4.3L 4.7L 1963 1964 1965 1966

For 64 65 66 Ford Mustang / 63 64 65 Falcon V8 Engine Auto/Manual

Specifications:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Material: All Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Includes CNC machined filler neck and cap

Core Size: 16-3/8 x 17-1/4 inches

Overall Size: 21-1/2 x 19-5/8 inches

Upper Inlet is: 1-1/2 inches Passenger Side

Lower Outlet is: 1-3/4 inches Passenger Side

Trans Cooler Details are: 1/8-27 NPT

Mounting Type is: Bracket

OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

FAN Specification:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050"

Thickness (in): 2.500"

Number of Blades: 8 S-Type blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.
