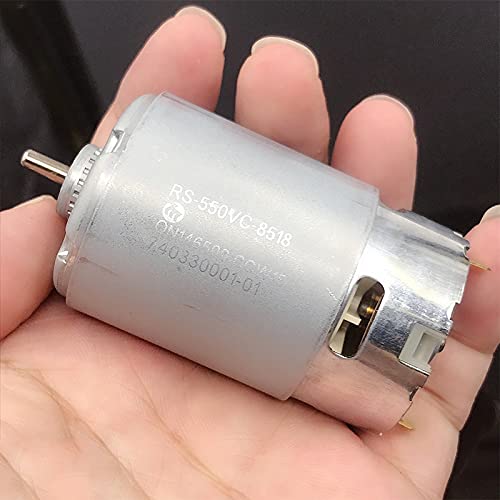

Speed(RPM): 550VC-8518 Package Includes: Motor x 1pcs Torque: not clear Usage: Home Appliance,screwdriver Model number: RS-550VC-8518 Specifications:RS-550VC-8518
1.Brand: MABUCHI MOTOR
2.Model: RS-550VC-8518
3.Motor diameter: 37.8mm
4.Motor length: 57mm
5.Output shaft diameter: 3.17mm
6.Output shaft length: 10mmn
7. Test data(No load)
Voltage:10.8V Speed:21800RPM Cuurent:1.73A
Voltage:12.0V Speed:24300RPM Cunent:2.00A
8.Weight: 250g
Specifications:RS-550VC-7524
1.Brand: MABUCHI MOTOR
2.Model: RS-550VC-7524
3.Motor diameter: 37.8mm
4.Motor length: 57mm
5.Output shaft diameter: 3.17mm
6.Output shaft length: 9mmn
7.Test data:(No load)
Voltage:9.4V Speed:14500RPM Cuurent:1.5A
Voltage:12.0V Speed:18300RPM Cunent:1.7A
8.Weight: 250g
Package includes:
Motor x 1pcs
Item specifics:
Torque: not clear
Usage: Home Appliance,screwdriver
Model number: RS-550VC-8518
Output power: not clear
Continuous current(a): 1.3A-1.9A
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: CCC,ce,ROHS
Origin: Mainland China
Output shaft diameter: 3.17mm
Output shaft length: 10mm
Voltage range: DC 6V-12V
