3 Row Core Radiator for 1932-1934 Ford-Grill-Shells 3"-Chopped Chevy V8, for 1930-1931 Ford Model A, for 1932 Ford Model B, for 1933-1938 Ford 40/48/68/74/78/81/85, 1928 1929 1933 1935 1936 1937 1938 28 29 30 31 32 33 34 35 36 37 38 Core Size: 20.00"H x 17.24"W x 1.73"T; Overall Size: 25.98"L x 19.88"W x 5.91"H; Inlet/Outlet: 1.50"/1.77"; Transmission oilcooler: φ26*250*1/8-27NPT(P) High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation Crafted by our professional team using the highest-grade materials for exceptional longevity. Fitment:
The radiator Compatible with:
1932-1934 Ford-Grill-Shells 3"-Chopped Chevy V8 Engine
1930-1931 Ford Model-A
1932 Ford Model B
1933-1934 Ford Model 40
1935 Ford Model 48
1936 Ford Model 68
1937 Ford Model 78/Model 74
1938 Ford Model 85/Model 81A

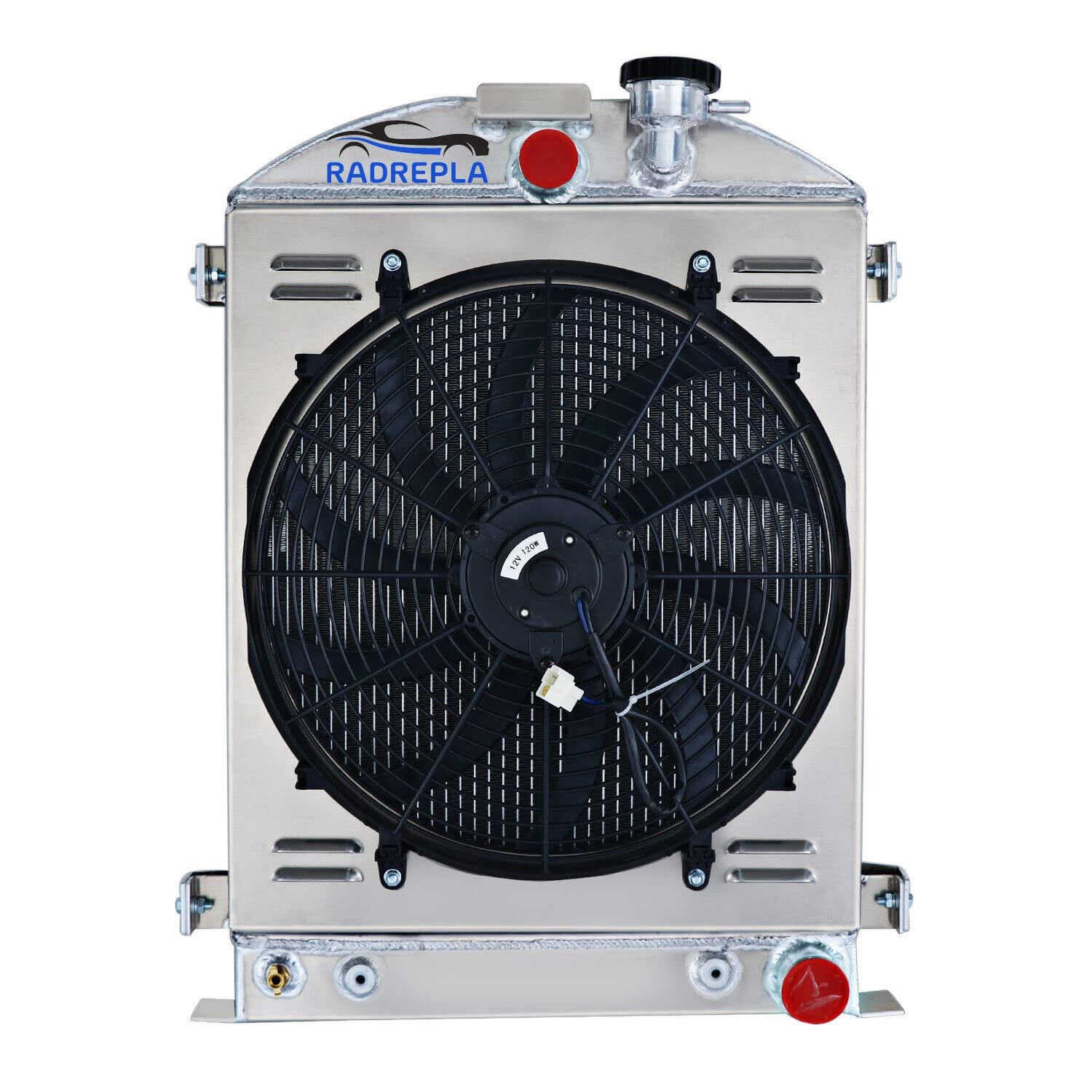

Package Include:
1 x 3-Row AA5052 Aluminum Radiator
1 x CNC Machined Radiator Cap
1 x AA5052 Aluminum Shroud
1 x 16" Fans (Includes mounting kits)
1 x Thermostat Relay Kit

Radiator Details
Row Count: 3 Row
Core Size: 20.00"H x 17.24"W x 1.73"T
Overall Size: 25.98"L x 19.88"W x 5.91"H
Inlet/Outlet: 1.50"/1.77"
Transmission oilcooler: φ26*250*1/8-27NPT(P)
Petcoke Drain: OEM Style Brass Petcoke Drain
Radiator Cap: CNC Machined Filler Neck And Cap

Fan Details:
Maximum Fan CFM: 2000±200
Fan Diameter x Height x Thickness:16.05" x 16.05" x 2.79"
Number of Blades: 10 blades (Plastic)
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.

Why Choose us?
1.Made of aircraft AA5052 grade aluminum, greatly prolonged the Lifespan!
2.Brazed core technology for optimal performance and reliability!
3.OEM style brass petcock drain re more durable than other plastic one!
4.Meticulously built to superior OE standards for a precise fit!
